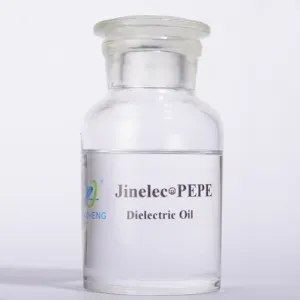

Product Name: Phenylethylphenylethane Insulating Liquid (PEPE)

CAS Number: 35254-73-0

Chemical Formula: C₁₆H₁₈

JINELEC 300, also known as low temperature resistant S insulating liquid, is mainly composed of phenylethylphenylethane (including isomers). This product has good physical and chemical properties and electrical properties, and is an ideal impregnation agent for power capacitors. It provides a relatively low freezing point and relatively low viscosity at very low temperatures, and has excellent compatibility with polypropylene film and ability to resist partial discharge, making it more suitable for capacitive voltage transformers and voltage-grading capacitors.

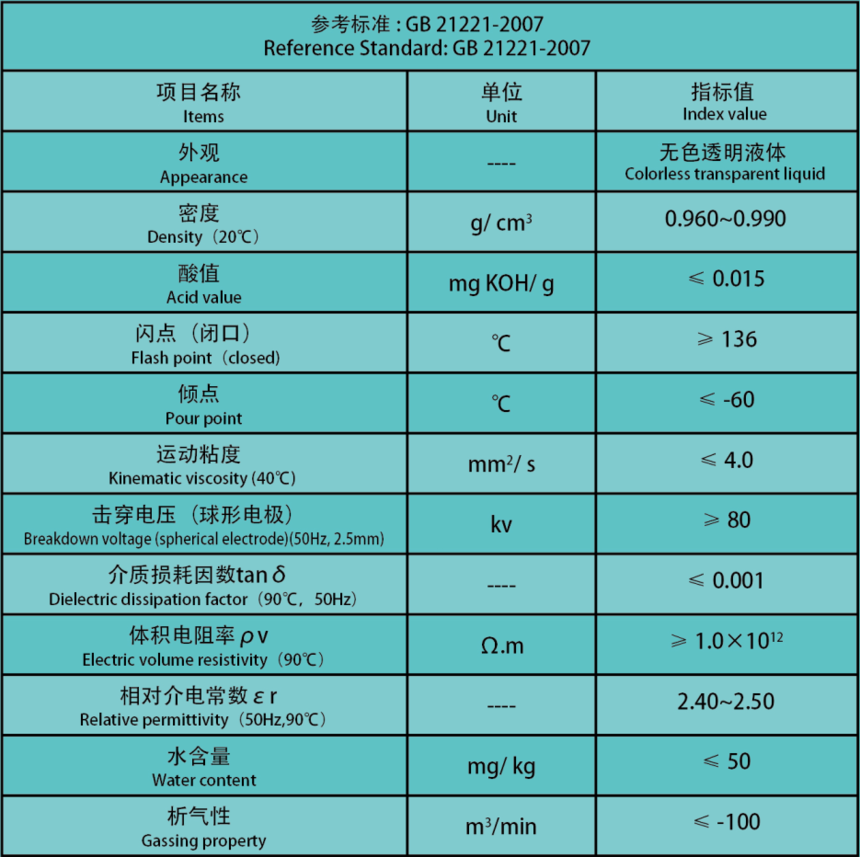

Product Data

Note: The above data are only the typical data of the product. The product is subject to the final analysis.

Handling and storage

JINELEC 300 should keep away from flames and hot surfaces. Wash thoroughly after handling. Use good personal hygiene practices and wear appropriate personal protective equipment.

Keep JINELEC 300 container tightly closed and properly labeled. Use and store this material in cool, dry, well-ventilated area away from heat and all sources of ignition. Store only in approved containers. Keep away from any incompatible material. Protect container against physical damage.

"Empty" containers retain residue and may be dangerous. Do not pressurize, cut, weld, braze, solder, drill, grind, or expose such containers to heat, flame, sparks, or other sources of ignition. They may explode and cause injury or death. "Empty" drums should be completely drained, properly bunged, and promptly shipped to the supplier or a drum reconditioner. All containers should be disposed of in an environmentally safe manner and in accordance with governmental regulations.

This information is based on our present knowledge and experience. However, it implies no liability or other legal responsibility on our part, including with regard to existing third-party patent rights. In particular, no guarantee of properties in the legal sense is implied. We reserve the right to make any changes according to technological progress or further developments. The customer is not released from the obligation to conduct careful inspection and testing of incoming goods.
